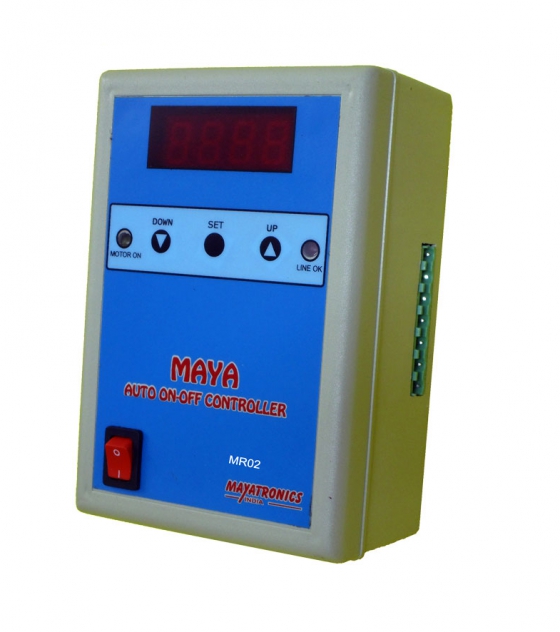

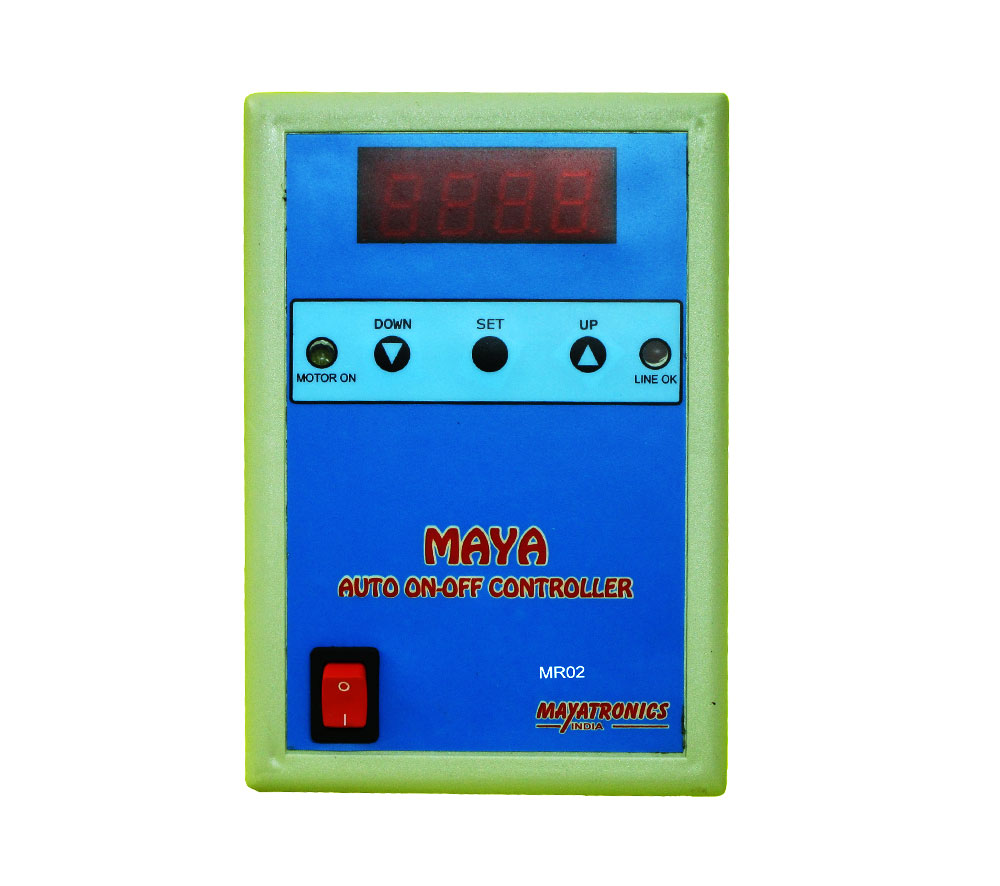

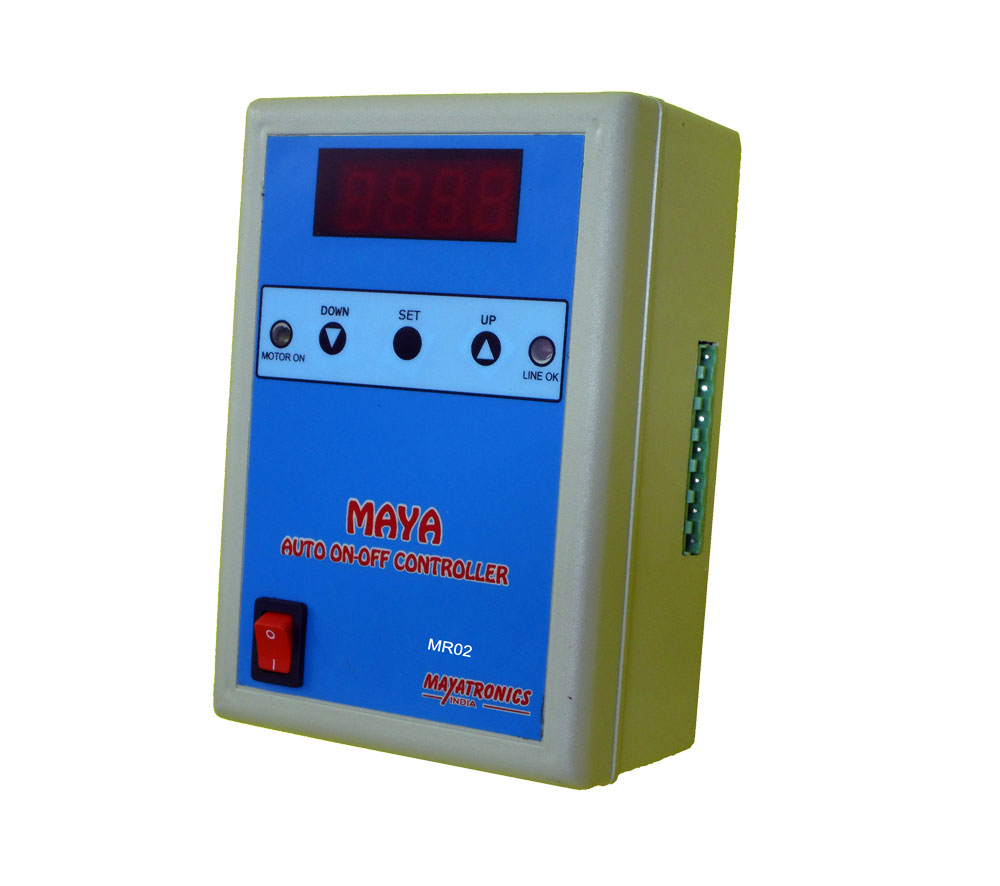

Auto ON-OFF Controller – MR02

Applications: Used to automate irrigation, schedule irrigation tasks etc

Add to Wishlist

Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/mayatronics/public_html/wp-content/themes/maya/woocommerce/single-product/meta.php on line 17
Category:

Product Features

  • Starts the pump set at your required time (ON-Delay) and runs for the required period
  • Power failure period will be compensated
  • Stops the motor during line faults
  • Can be connected to any type of Star Delta or D.O.L starter
  • 3 phase and Single phase models
  • Setting option to automatically run daily at the set time (from 1 to 99 days)


Product Dimension: 165MMX120MMX75MM
Product Warranty : 6 months from the date of purchase.

OPERATING MANUAL

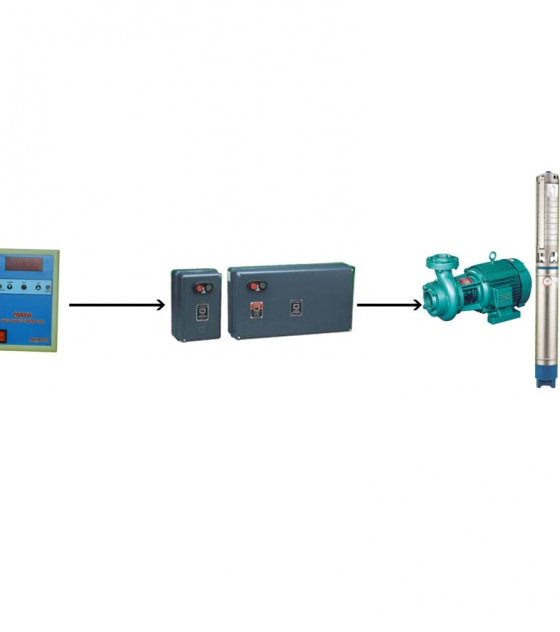

  1. Connect the timer unit to your starter as per the connection diagram
  2. Switch on the Mains ON switch in the front side of the unit
  3. If the display shows 2 Ph and Line OK LED not glows, interchange R &Y
  4. Using SET, UP and DOWN buttons, set the starting time (ONt) of the motor(24 hour clock) and running time (DURN, 1mimute to 24 hours) of the motor. Also set the number of days (rpt) the motor has to work automatically(1-99 days)
  5. The motor starts at the set ON time and runs for the set duration. Power failure period will be compensated in running time.

For more information please watch the following video:
